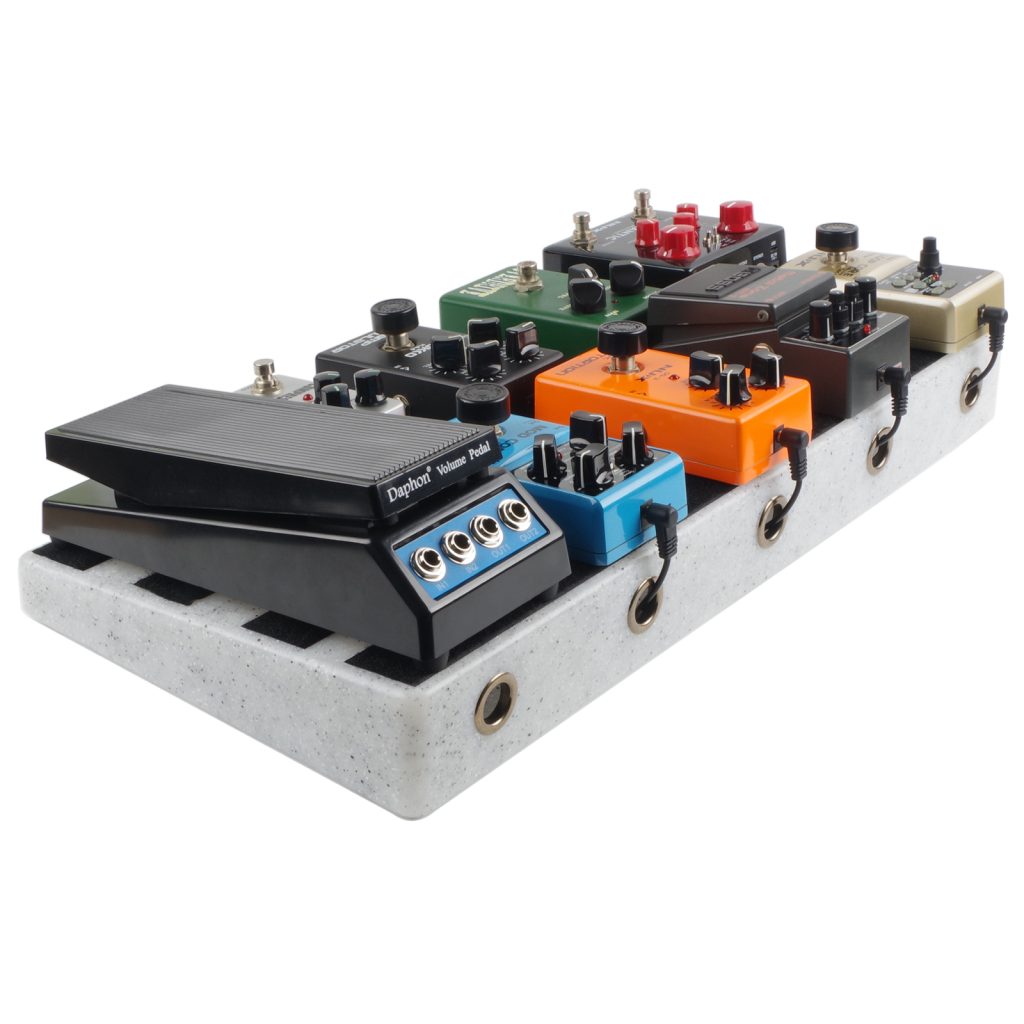

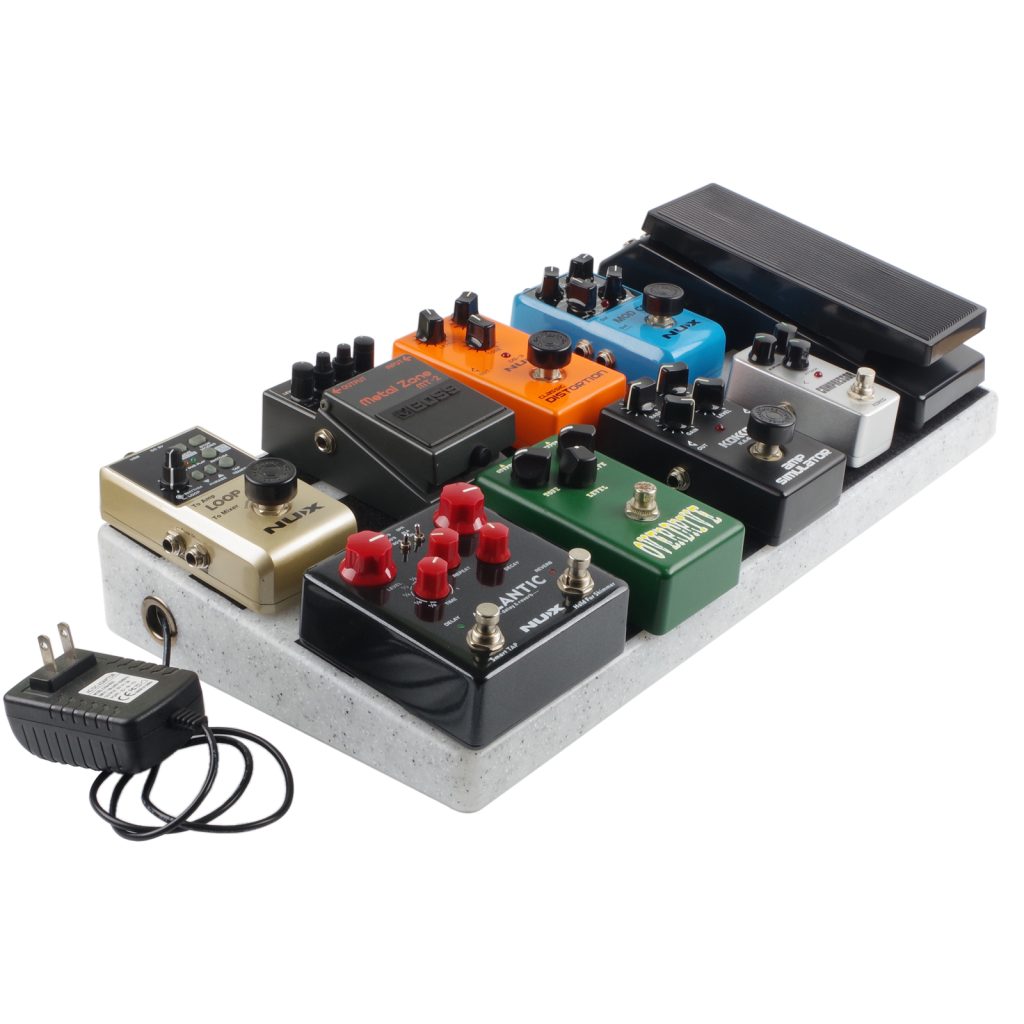

使 用 效 果 展 示
Usage Demonstration

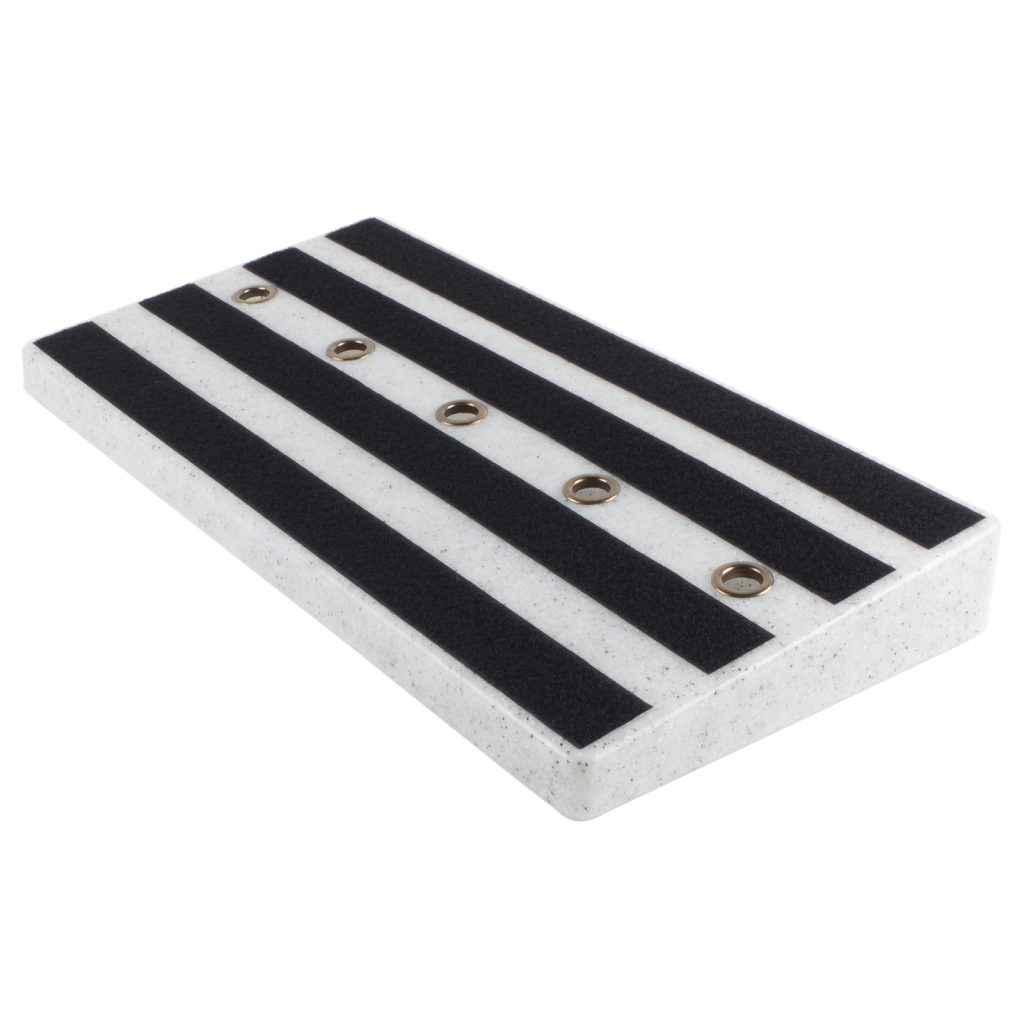

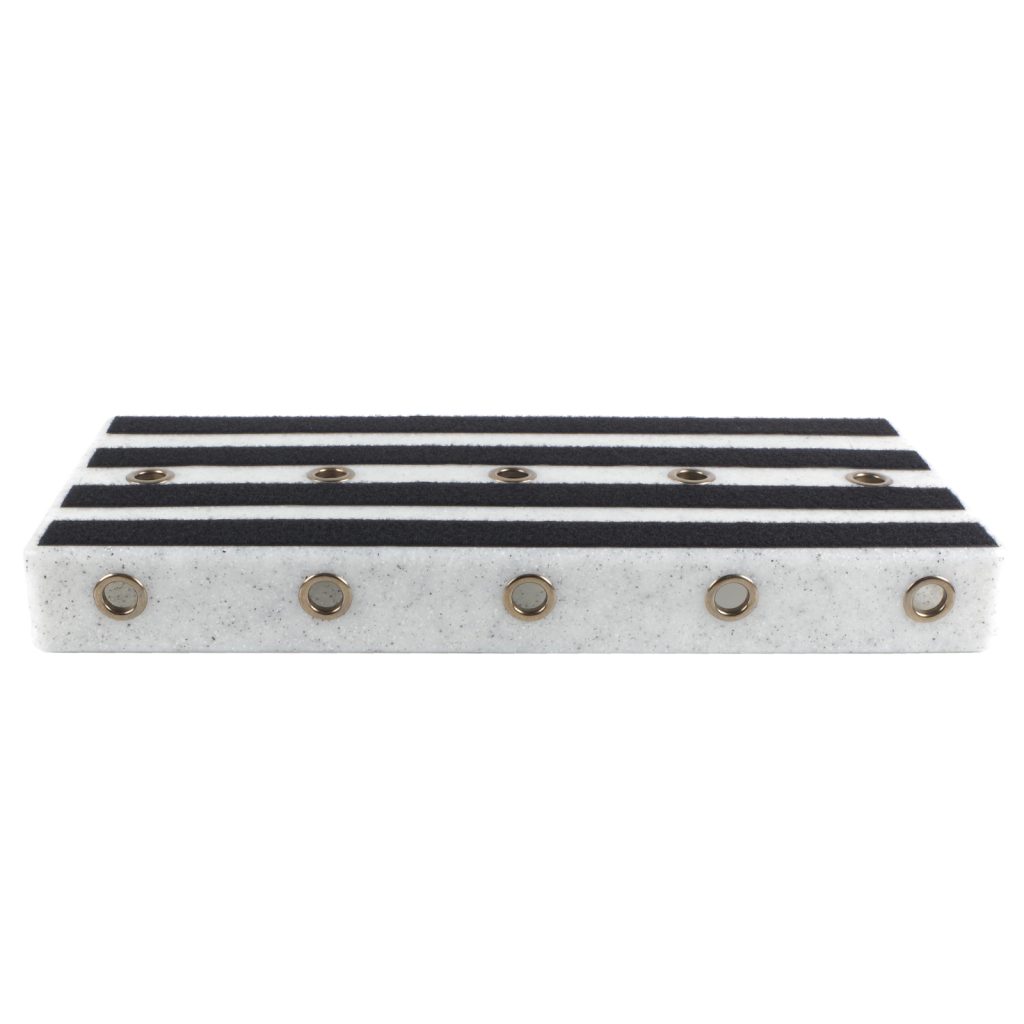

前侧面 | Front Side

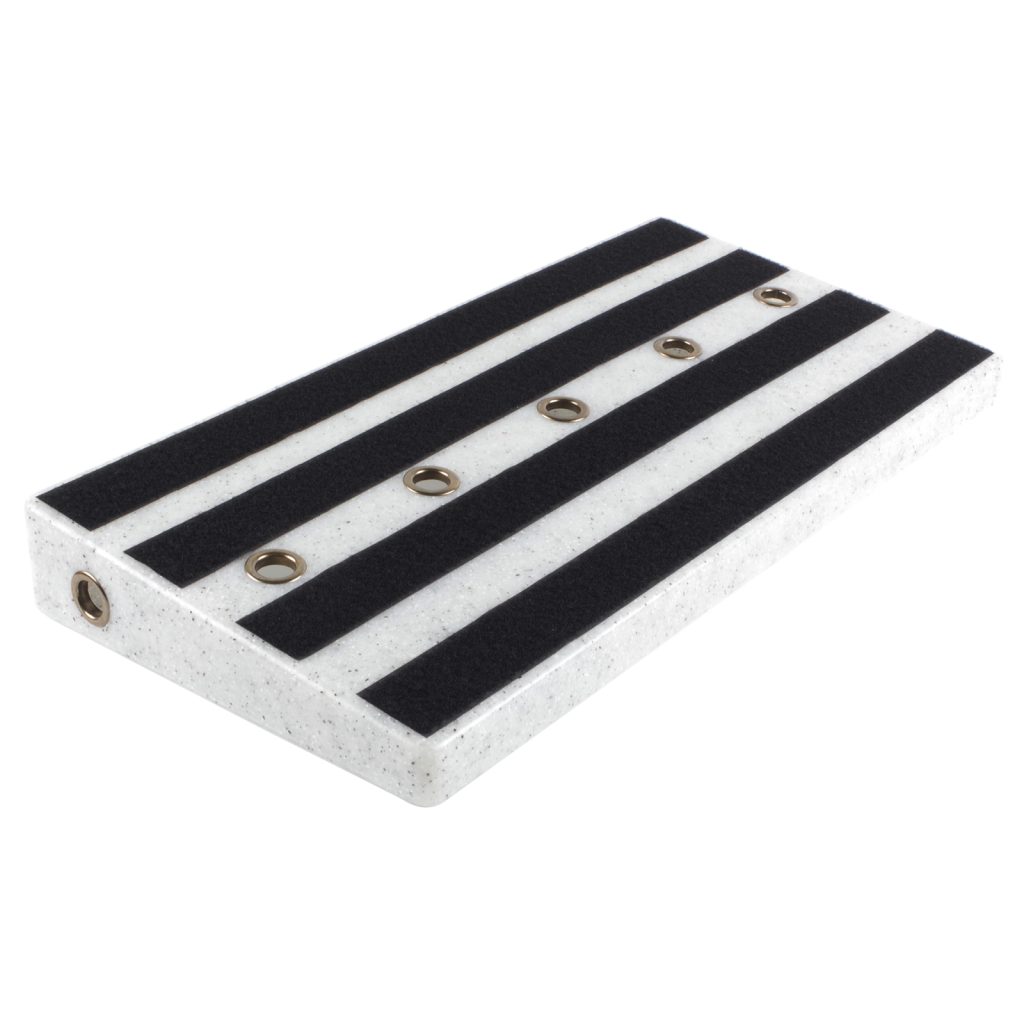

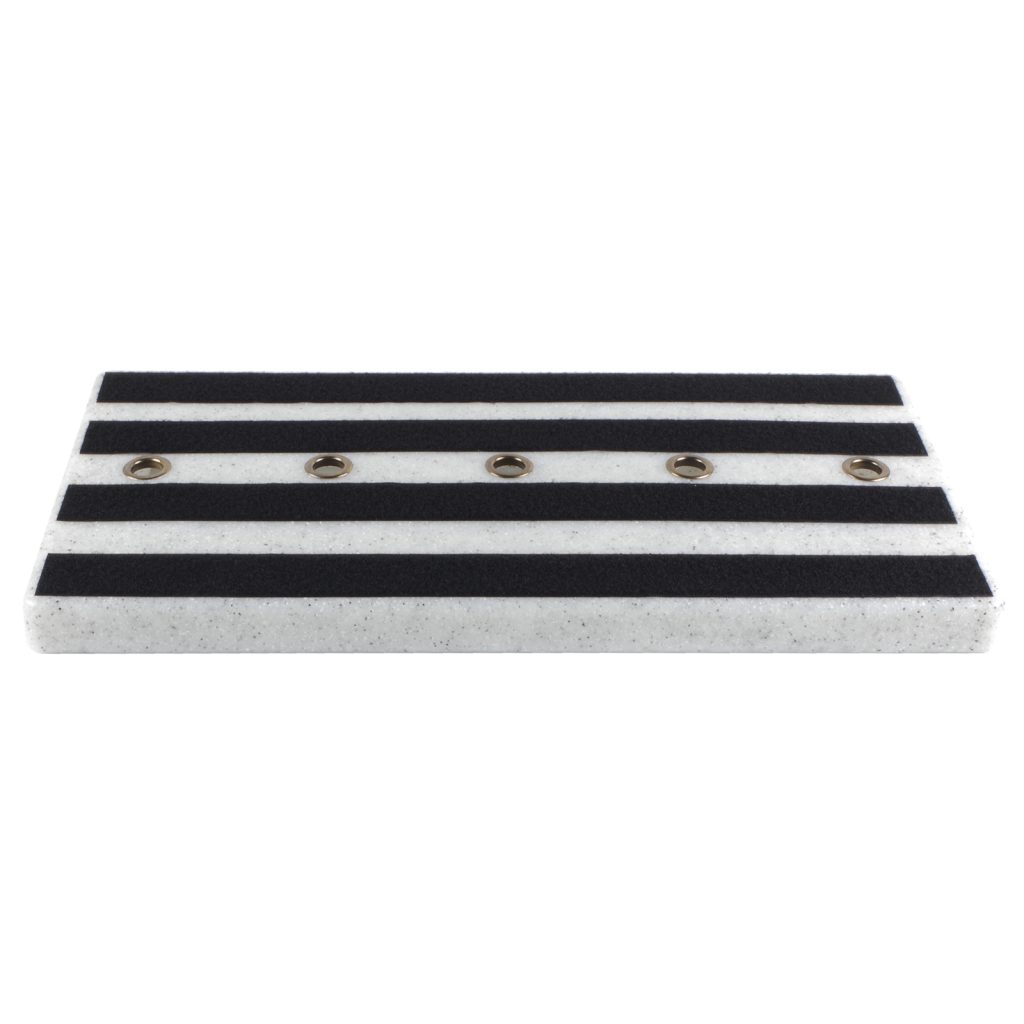

后侧面 | Back Side
产 品 描 述
Product Description
1. 50*25cm的表面尺寸,能轻松容纳10块BOSS大小的单块效果器或者更多迷你单块,甚至是综合效果器与单块效果器的组合也游刃有余;
1. A surface dimension of 50*25cm can easily accommodate 10 pedalboard-sized individual effects pedals or even more mini pedals. It can effortlessly accommodate combinations of multi-effects units and individual pedals as well.
2. 平面设计,让消费者拥有了更灵活的组合方法;
2. Graphic design, enabling consumers to have more flexible combination methods.
A: 常规单块10块(BOSS单块大小);
A: Standard configuration of 10 individual pedals (BOSS pedal size).
B: 迷你单块,例如MOOER或者TC大小的,可以放置最少15块;
B: Mini pedals, such as those from MOOER or TC sizes, can accommodate a minimum of 15 units.
C: 综合效果器,绝大部分的大综合效果器都可以放置在这个板子上面;
C: Multi-effects units, the majority of larger multi-effects units can be placed on this board.
D: 综合与单块组合混搭;
D: Combination of multi-effects and individual pedals mixing and matching.

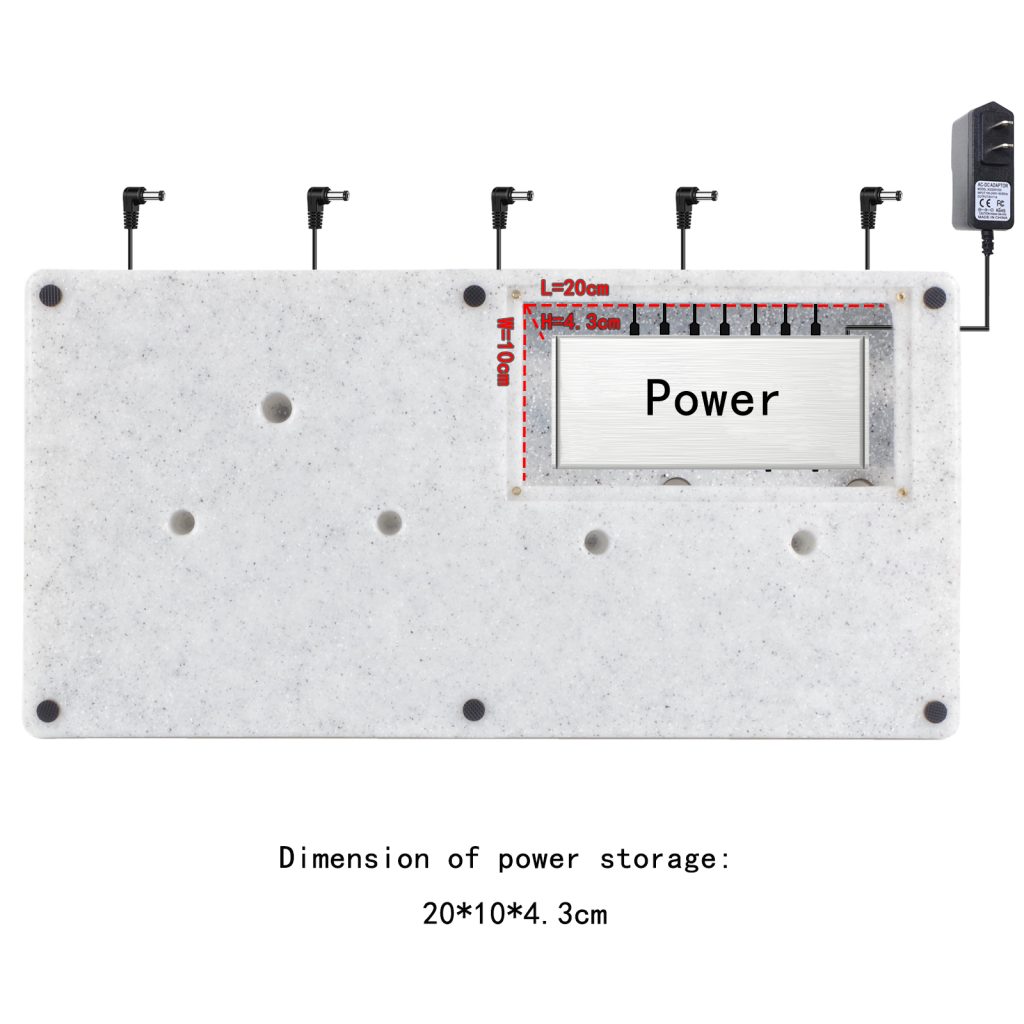

3. 盒装式设计,可隐藏市面上大部分效果器电源,保护了效果器电源而且节约了板子表面空间,使表面可以放置更多的效果器,并且通过11个走线孔位合理地隐藏了效果器电源线,使表面看起来更整洁美观。*注:(电源空间20*10*4.5cm);
3. Boxed design, capable of concealing the power supplies of most effects pedals available in the market. This design safeguards the pedal power sources while conserving surface space on the board, allowing for the placement of more effects pedals. Additionally, the 11 strategically positioned cable holes effectively conceal the effects pedal power cords, giving the surface a cleaner and more aesthetically pleasing appearance. Note: (Power supply compartment dimensions: 2010*4.5cm)
4. 特殊工程塑料材质,裸板重约1.1kg,突破传统的金属材质,携带轻便而且防锈耐用(详见防摔抗压测试);由于材料具备可塑性,使用者甚至可以根据不同的使用需求进行一定的改动(可轻易打孔或切割)。
4. Special engineering plastic material, the bare board weighs approximately 1.1kg, breaking away from the conventional metal materials. It is lightweight, portable, and rust-resistant, surpassing durability expectations (refer to impact resistance and pressure tests). Due to its malleability, users can even make certain modifications based on different usage needs (easily drill holes or cut, if necessary).
为了让音乐爱好者有更多的组合方案,我们还建议消费者可以DIY走线孔,在不破坏加强柱的情况下,一般不会损坏板子。建议如下:
To offer music enthusiasts even more combination options, we also suggest that consumers have the option to DIY cable holes. This can generally be done without damaging the reinforcement pillars and causing harm to the board. Our recommendations are as follows:
A:加大孔径—如果您的电源线更粗或者造型独特,可以用更大孔径的钻头按照需求钻孔,或者用手工刀切割出你要的走线孔;
A: Enlarge Hole Diameter – If your power cables are thicker or have unique shapes, you can use a larger drill bit to create holes according to your requirements.Alternatively, you can use a utility knife to carefully cut out the cable holes you need.
B: 增加走线孔—-如果你想隐藏效果器连接线,可在适当的位置加孔;
B: Add Additional Cable Holes – If you wish to conceal the connections of your effects pedals, you can create additional holes in suitable locations.
C: 电钻或者手工刀都可以实现打孔。(DIY请注意不要弄伤手,也不要破坏加强柱,一切风险自己承担。);
C: You can use either an electric drill or a utility knife to create the holes. (Please be cautious while DIY to avoid injuring yourself and ensure that you don’t damage the reinforcement pillars. All risks are to be assumed by yourself.)

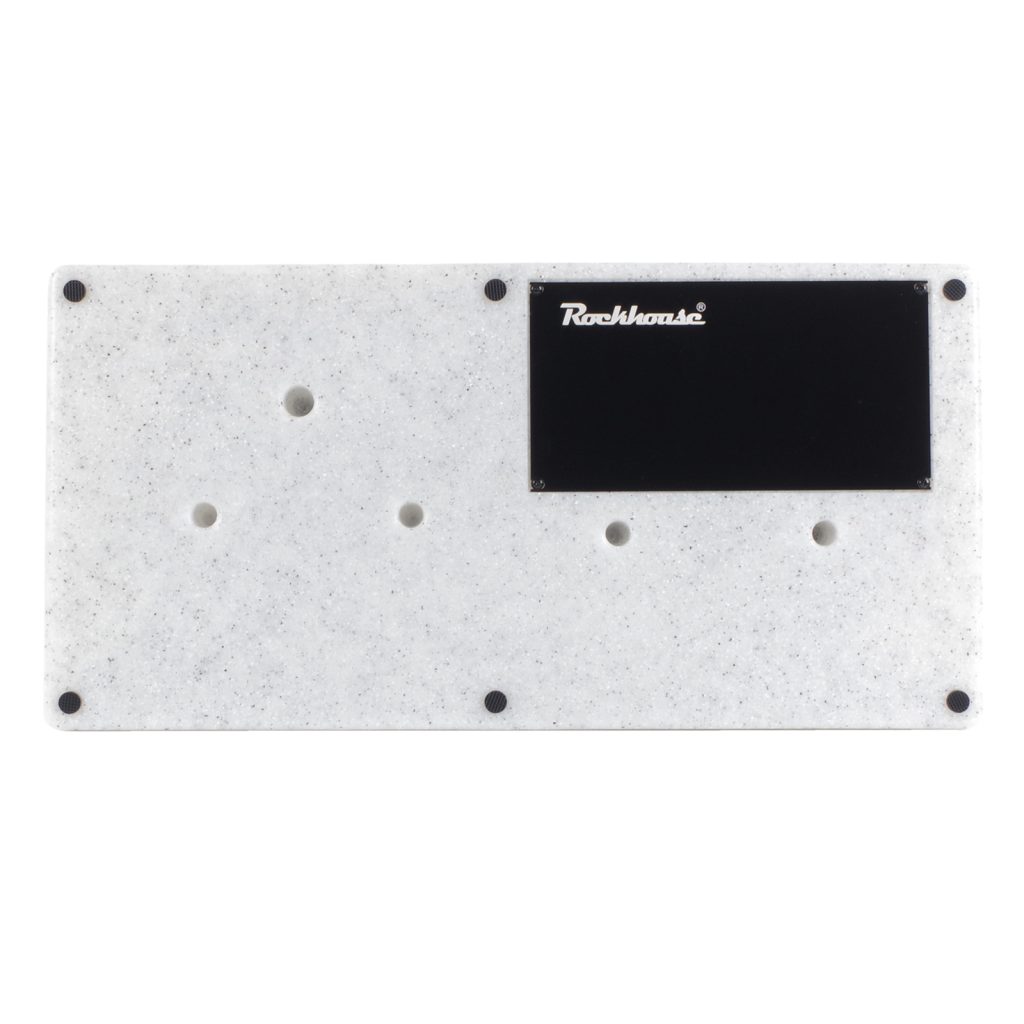

5. 为了更结实耐用,我们在内部加了5支撑柱结构,并在底部贴上6个防滑橡胶垫;
5. To enhance strength and durability, we’ve incorporated 5 internal support pillars and affixed 6 anti-slip rubber pads to the bottom.
6. 配件:出厂时我们已经为您贴好了毛面魔术贴,并为您的单块配备了足够的魔术贴勾面,为了方便装配电源,我们还配备了一把螺丝刀,放在效果器包的外部口袋;
6. Accessories: Upon delivery, we’ve already applied the loop side of the hook-and-loop fastener for you and provided an ample amount of hook side fasteners for your individual pedals. For convenient power supply installation, we’ve included a screwdriver in the external pocket of the effects pedal bag.
